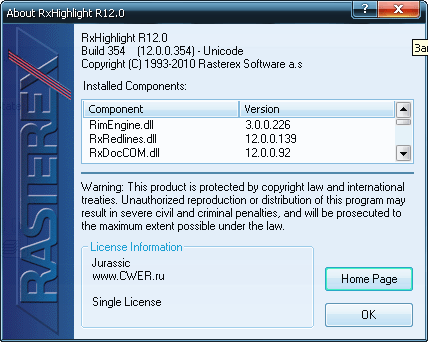

Rasterex RxHighlight 12.0.0.354

Rasterex RxHighlight v12.0.0.354

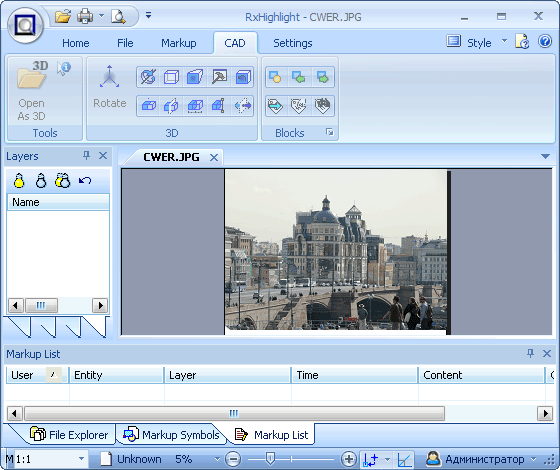

Rasterex RxHighlight - полноценный вьювер и конвертер сканированной графики (в т.ч. инженерной). В Rasterex RxHighlight реализована поддержка растровых, векторных и гибридных форматов, поддержка форматов офисных приложений. Все это обеспечивает максимальную гибкость программы. Функции просмотра расширяются возможностями зумирования, панорамирования, постраничным просмотром, возможностью наложения графических файлов для их сравнения и т.д.
Rasterex RxHighlight v12.0.0.354

Rasterex RxHighlight состоит из:
  • RxView - программы для просмотра графических файлов;
  • RxHighlight - полнофункционального инструмента для просмотра, связывания, печати сканированных изображений, поддерживающего работу более чем с 280 различными форматами файлов, в т.ч 3D.

В программу входят компоненты:

  • RimEngine       version 3.0.0.226
  • RxConvertCOM       version 12.0.0.56
  • RxDocCOM       version 12.0.0.92
  • RxLinkCOM       version 12.0.0.10
  • RxPrint3DCOM       version 12.0.0.11
  • RxPrintCOM       version 12.0.0.39
  • RxRedCOM       version 12.0.0.29
  • RxTextCOM       version 12.0.0.12
  • RxView3DCOM       version 12.0.0.22
  • RxViewCOM       version 12.0.0.27
  • RxConfigCOM       version 12.0.0.21
  • RxSymbolCOM       version 12.0.0.17
  • RxRedlines       version 12.0.0.139
  • RxAcadConverter       version 8.1.0.12

Фильтры форматов:

  • RxFilter_ACAD.dll       version 10.0.0.136
  • RxFilter_Anvil1000.dll       version 1.0.0.16
  • RxFilter_BMP.dll       version 1.0.0.33
  • RxFilter_Binary.dll       version 1.0.0.20
  • RxFilter_CADOverlay.dll       version 1.0.0.6
  • RxFilter_CALS.dll       version 1.0.0.33
  • RxFilter_CGM.dll       version 8.0.0.51
  • RxFilter_CIT.dll       version 1.0.0.29
  • RxFilter_Cadkey.dll       version 1.0.0.7
  • RxFilter_Calcomp.dll       version 4.0.0.28
  • RxFilter_Content.dll       version 2.0.0.62
  • RxFilter_DGN.dll       version 2.0.0.82
  • RxFilter_DSI.dll       version 3.0.0.2
  • RxFilter_DWF.dll       version 2.0.0.76
  • RxFilter_DWF3.dll       version 2.0.0.5
  • RxFilter_DWF6.dll       version 4.0.0.41
  • RxFilter_DWF7.dll       version 9.0.0.10 New
  • RxFilter_EDMICS.dll       version 1.0.0.18
  • RxFilter_ESP.dll       version 1.0.0.16
  • RxFilter_ESRI.dll       version 3.0.0.5
  • RxFilter_Excel.dll       version 3.0.0.32
  • RxFilter_FelixCAD.dll       version 1.0.0.1
  • RxFilter_GIF.dll       version 2.0.0.27
  • RxFilter_GTX.dll       version 1.0.0.13
  • RxFilter_Gerber.dll       version 1.0.0.28
  • RxFilter_HPGL.dll       version 3.0.0.133
  • RxFilter_JPEG.dll       version 3.0.0.32
  • RxFilter_JPEG2000.dll       version 6.0.0.5
  • RxFilter_ME10.dll       version 2.0.0.27
  • RxFilter_MetaFile.dll       version 1.0.0.9
  • RxFilter_MicrostationV8.dll       version 6.0.0.55
  • RxFilter_PCX.dll       version 1.0.0.14
  • RxFilter_PD.dll       version 1.0.0.5
  • RxFilter_PDF.dll       version 5.0.0.135
  • RxFilter_PDFW.dll       version 6.0.0.47
  • RxFilter_PNG.dll       version 1.0.0.31
  • RxFilter_PSD.dll       version 1.0.0.4
  • RxFilter_PowerPoint.dll       version 1.0.0.9
  • RxFilter_RAS.dll       version 1.0.0.14
  • RxFilter_RGB.dll       version 1.0.0.18
  • RxFilter_RLC.dll       version 1.0.0.19
  • RxFilter_RLE.dll       version 1.0.0.16
  • RxFilter_RML.dll       version 2.0.0.14
  • RxFilter_RND.dll       version 1.0.0.12
  • RxFilter_RasterCAD.dll       version 1.0.0.6
  • RxFilter_SLD.dll       version 1.0.0.8
  • RxFilter_SVG.dll       version 6.0.0.9
  • RxFilter_TAF.dll       version 2.0.0.6
  • RxFilter_TFF.dll       version 2.0.0.29
  • RxFilter_TG4.dll       version 2.0.0.16
  • RxFilter_TGA.dll       version 1.0.0.16
  • RxFilter_TIFF.dll       version 2.0.0.34
  • RxFilter_Text.dll       version 1.0.0.26
  • RxFilter_VC5.dll       version 1.0.0.24
  • RxFilter_VEC.dll       version 1.0.0.14
  • RxFilter_Word1995.dll       version 1.0.0.14
  • RxFilter_Word2000.dll       version 3.0.0.52
  • RxFilter_XWD.dll       version 1.0.0.10
  • RxFilter_SFF.dll       version 8.0.0.10
Rasterex RxHighlight v12.0.0.354

Что нового в этой версии:
  • Microstation 3D support.
  • Text Search and Extraction from all Stellent Formats (Office 2007)
  • Scenic Windows 7 visual style + Carbon visual style.
  • BCG User Graphic Interface Library version 11.
  • Slider (statusbar) now zooms by center.
  • Microstation V8 - recalculate extents option.
  • Xrefs are now listed for Microstation 8 files.
  • Rockey/Sentinel lock type selection in license finder dialog.
  • Measure export from measure dialog.
  • INSUNITS measurement settings are now read from Autocad files - available in file info.
  • Slider (statusbar) will now also work correctly on Autocad and other CAD formats (calibration may be needed).
  • RxView now uses a new license Id, ROCKEY. Previously the License Id was ROCKY.
  • Named views are now shown in PageBar.
  • Added option for color change during consolidation (in addition to layer) - entity picking.
  • Added color option to Consolidation by layer/user dialog.
  • Added perimeter summary to Area Measurement Summary dialog.
  • Import redlines now also accept xml files.
  • Markup views save and restore dialogs implemented. Changed xcm format to support views.
  • Edit of Markup Areas : Added new property page for measure statistics.
  • New selection in Print Options Dialog : Markup Only - select to print only markup without image.

Исправлено в этой версии:

  • 4624 - Copying a long text into the markup text dialog and confirming with the OK button causes RxHighlight to shut down with no error messages.
  • Copy/Paste of rasterx markup format failed to create new element (unicode problem).
  • RxRedlines (b137) Import didn't handle unicode filenames and didn't return success/fail.
  • Fixed area measurement summary calculation errors on files with drawingscale != 1.0
  • Fixed problem with wrong results for accumulated values in Measure Dialog when drawing scale != 1:1 used.
  • 4675 - Markup fix : display error for far-east text.
  • Several other problems related to Unicode fixed (mostly redline related).
  • 4591 - Problem with markup "Insert hole".
  • RimEngine and component fixes.
    • RxConvertCOM problem- An inaccurate calculation of paper format size caused a problem when using the ConvertToPDF method.
    • RxRedlines - More problems regarding Unicode (far-east) text solved. (getElementText property)
  • Format reader fixes AutoCAD
    • 4567 - Fixed a problem where some raster files were missing.
    • 4583 - A file fail to open.
    • 4633 - File with Unicode file name fail to open.
    • Added support for AutoCAD 2011.
  • Format reader fixes Excel
    • 4566 - A file caused RxView to crash.
  • Format reader fixes HPGL
    • 4613 - A file had some lines that were displayed with wrong thickness (too thin).
    • 4608 - Added support for Allplan NID files. (Requires that RxUNZIP.dll is found either in path or in RxView.exe folder.)
  • Format reader fixes JPEG
    • 4607 - An Excel file caused viewer to crash.
  • Format reader fixes Microstation V8
    • Added support for 3D rendering in RxView.
    • Fixed a problem with filter not writing settings to registry.
  • Format reader fixes Acrobat PDF
    • 4466 - A PDF file opened as Hex-dump.
    • 4590 - Hyperlinks for PDF not found.
    • 4579 - An element in a PDF file was not displayed in the right place.
    • 4575 - A file was displayed blank in RxView.
  • Format writer fixes Acrobat PDF
    • 4639 - Converting a dwg file to PDF caused some information to not be included in the target file.
  • Format reader fixes MS Word 2000-XP
    • 4632 - A file caused an access violation when opened. Caused by buffer overflow in function CRightBraceDrawing::Print() - ArcToPolygon
    • 4678 - Some files was not handled by the filter.
    • 4671 - Some files was not handled by the filter.



Скачать программу Rasterex RxHighlight v12.0.0.354 (77,5 МБ):
